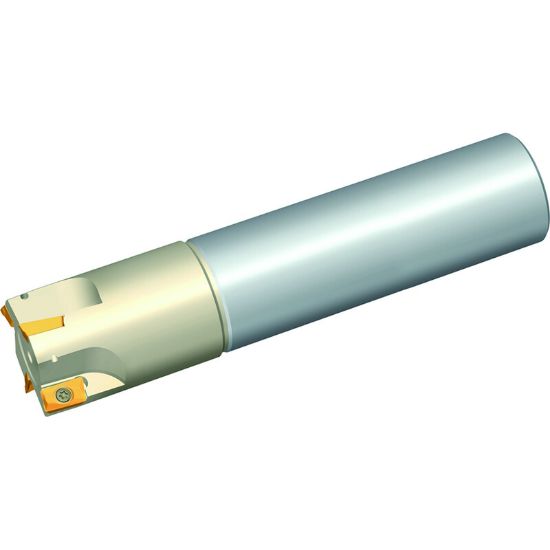

Picture of ZCC EMP01-2.00″-G1.25″-AP16-05 90.0° Milling Cutter 2.000 Cutter Diameter End Mill 1.250

ZCC EMP01-2.00″-G1.25″-AP16-05 90.0° Milling Cutter 2.000 Cutter Diameter End Mill 1.250

ANSI: EMP01-2.00″-G1.25″-AP16-05

ISO: EMP01-2.00″-G1.25″-AP16-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ZCC
SKU: ZCC4350000923
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Insert Size Ic 16
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Cylindrical
Overall Len 5.5000 139.70MM
Flutes/Inserts 5
Neck Length 1.7500 44.45MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 0.6300
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP
