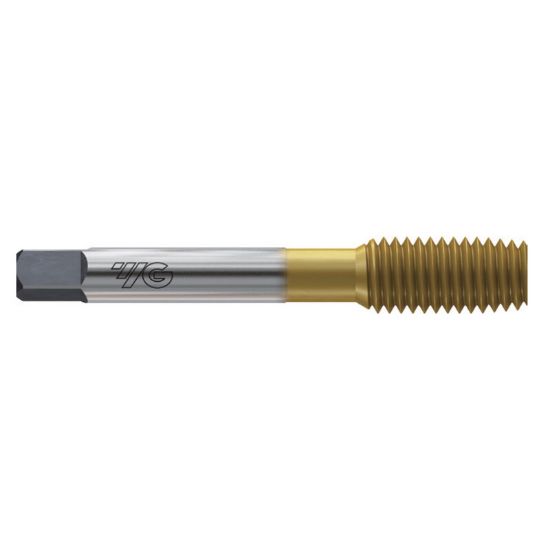

Picture of YG-1 Z7406 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z7406 1/4-20.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z7406
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Made In USA No
Package Size 1
Shipping State Illinois
Application Bottom Tapping, Roll Form Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Thread Pitch 20.00TPI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Dimension Standard ANSI/ANSI
Drill Range 0.2244 5.70MM - 0.2311 5.87MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Tap Type Bottoming
Thread Limit H6/GH6
Thread Size 1/4"
Shank/Pilot Dia 0.2550 6.48MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
