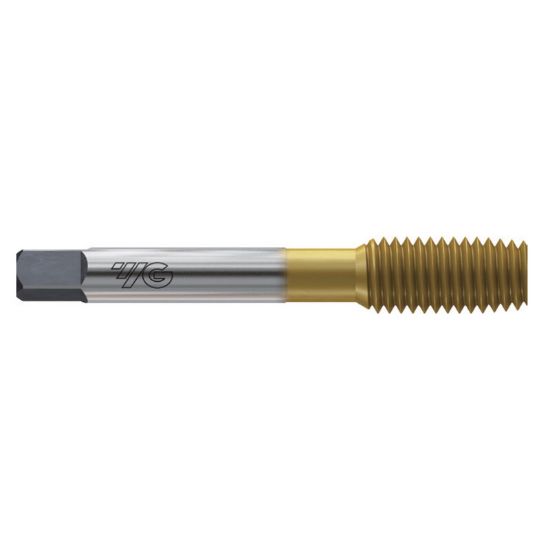

Picture of YG-1 Z7366 No.12-24.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

YG-1 Z7366 No.12-24.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z7366
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Overall Len 2.3750 60.33MM
Length Type Standard
Tap Type Bottoming
Thread Size No.12
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.2200 5.59MM
Tap Style Roll Form
Drill Range 0.1945 4.94MM - 0.2004 5.09MM
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Tap Chamfer 1.5P-2.0P
Thread Limit H6/GH6
Tool Material Steel
Tap Square 0.1650
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
