  • YG-1 Z6183 No.4-48.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

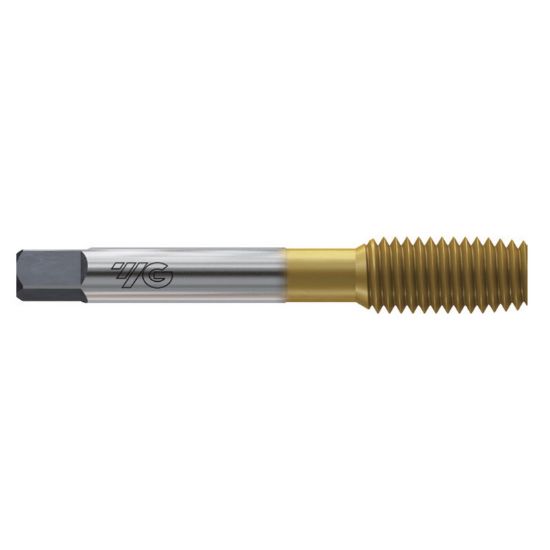

Picture of YG-1 Z6183 No.4-48.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z6183 No.4-48.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z6183
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Overall Len 1.8750 47.63MM
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Drill Range 0.1012 2.57MM - 0.1039 2.64MM
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Size No.4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Thread Pitch 48.00TPI
Tap Chamfer 1.5P-2.0P
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
