  • YG-1 Z6165 No.4-40.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

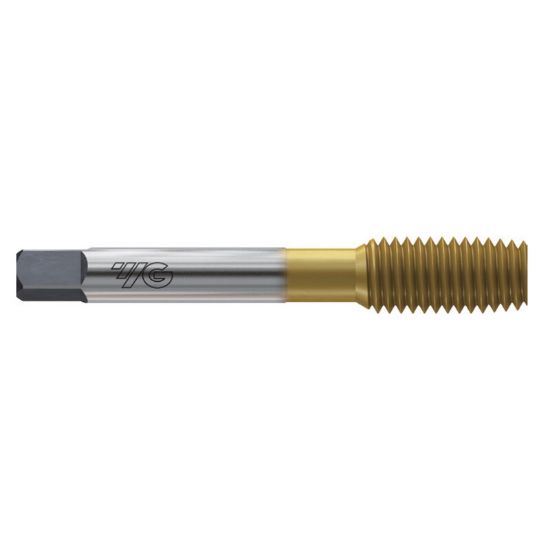

Picture of YG-1 Z6165 No.4-40.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

YG-1 Z6165 No.4-40.00TPI Roll Form Bottoming 1.5P-2.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z6165
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Roll Form Tapping, Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.8750 47.63MM
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Chamfer 1.5P-2.0P
Thread Pitch 40.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Tap Square 0.1100
Tap Type Bottoming
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
