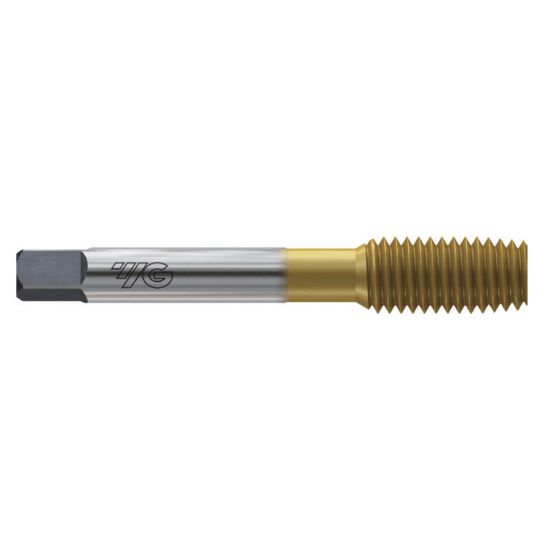

Picture of YG-1 Z5364 No.12-24.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5364 No.12-24.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z5364
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Through Hole Tapping, Plug Tapping, Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating TiN
Dimensional Specifications
Tap Type Plug
Thread Pitch 24.00TPI
Overall Len 2.3750 60.33MM
Tap Chamfer 4.0P-5.0P
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Square 0.1650
Thread Size No.12
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.2200 5.59MM
Tap Style Roll Form
Length Type Standard
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Drill Range 0.1945 4.94MM - 0.2004 5.09MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
