  • YG-1 Z5346 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

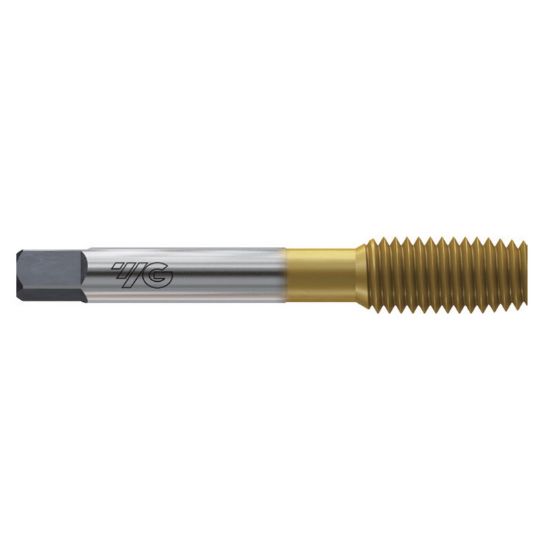

Picture of YG-1 Z5346 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5346 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z5346
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Shipping State Illinois
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Coating TiN
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 4.0P-5.0P
Length Type Standard
Tap Square 0.1520
Tap Type Plug
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Style Roll Form
Thread Limit H6/GH6
Tool Material Steel
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Overall Len 2.3750 60.33MM
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
