  • YG-1 Z5344 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

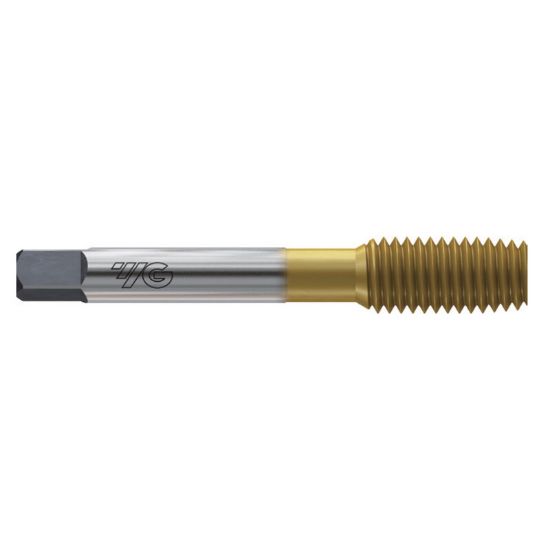

Picture of YG-1 Z5344 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5344 No.10-32.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z5344
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Roll Form Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Drill Range 0.1740 4.42MM - 0.1780 4.52MM
Thread Size No.10
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 32.00TPI
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Length Type Standard
Tap Style Roll Form
Thread Limit H4/GH4
Tap Square 0.1520
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
