  • YG-1 Z5324 No.10-24.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

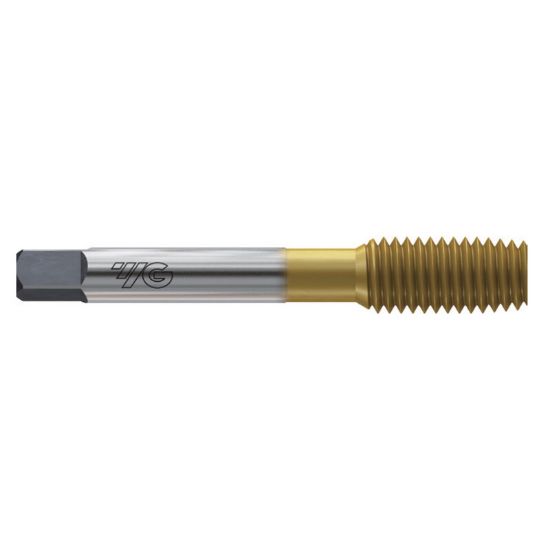

Picture of YG-1 Z5324 No.10-24.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

YG-1 Z5324 No.10-24.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z5324
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Application Plug Tapping, Tapping, Roll Form Tapping, Through Hole Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Limit H4/GH4
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Shank/Pilot Dia 0.1940 4.93MM
Drill Range 0.1685 4.28MM - 0.1740 4.42MM
Tap Style Roll Form
Tap Square 0.1520
Tap Type Plug
Overall Len 2.3750 60.33MM
Length Type Standard
Tool Material Steel
Thread Size No.10
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
