  • YG-1 Z4205 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

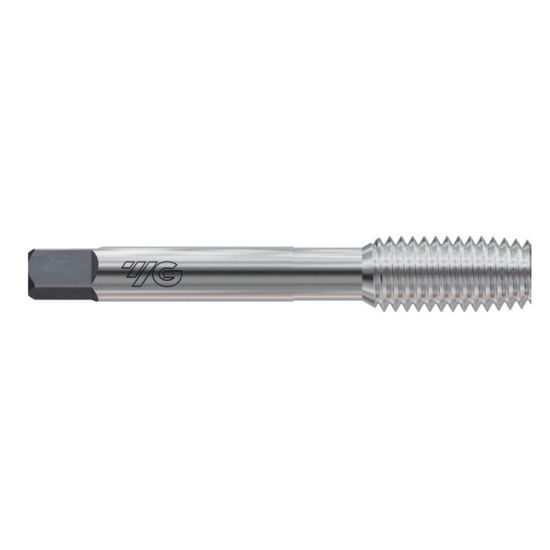

Picture of YG-1 Z4205 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4205 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4205
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 40.00TPI
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Overall Len 1.9370 49.20MM
Machine Side Connection Type Tap Collet
Tool Material Steel
Drill Range 0.1122 2.85MM - 0.1154 2.93MM
Tap Square 0.1100
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tap Chamfer 4.0P-5.0P
Thread Size No.5
Thread Type NC/UNC
Length Type Standard
Tap Style Roll Form
Shank/Pilot Dia 0.1410 3.58MM
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
