  • YG-1 Z4203 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

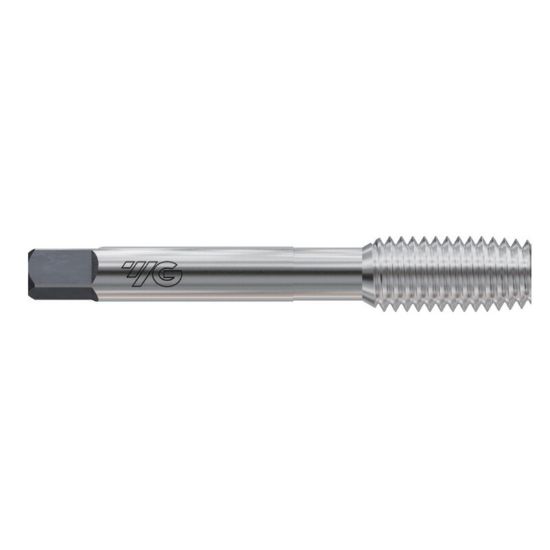

Picture of YG-1 Z4203 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4203 No.5-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4203
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Tapping, Through Hole Tapping, Roll Form Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Thread Size No.5
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Tap Style Roll Form
Thread Pitch 40.00TPI
Overall Len 1.9370 49.20MM
Tap Type Plug
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tool Material Steel
Drill Range 0.1122 2.85MM - 0.1154 2.93MM
Tap Square 0.1100
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1410 3.58MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
