  • YG-1 Z4163 No.4-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

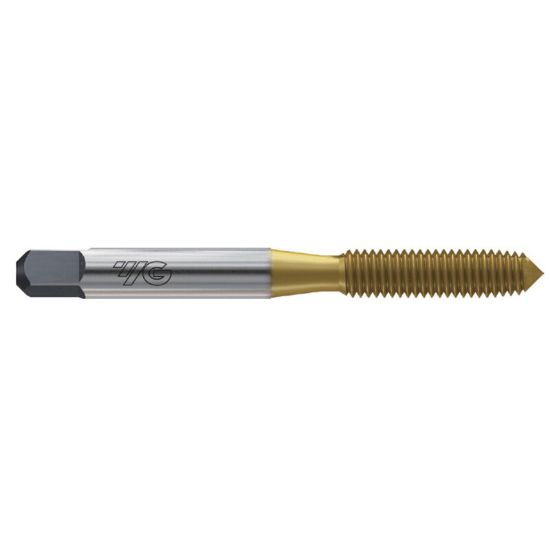

Picture of YG-1 Z4163 No.4-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

YG-1 Z4163 No.4-40.00TPI Roll Form Plug 4.0P-5.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-Z4163
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Made In USA No
Application Plug Tapping, Roll Form Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Brass, Copper, Stainless Steel, Titanium
Tool Material Steel
Tap Square 0.1100
Thread Size No.4
Shank/Pilot Dia 0.1410 3.58MM
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.0992 2.52MM - 0.1024 2.60MM
Length Type Standard
Tap Style Roll Form
Thread Pitch 40.00TPI
Tap Type Plug
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
