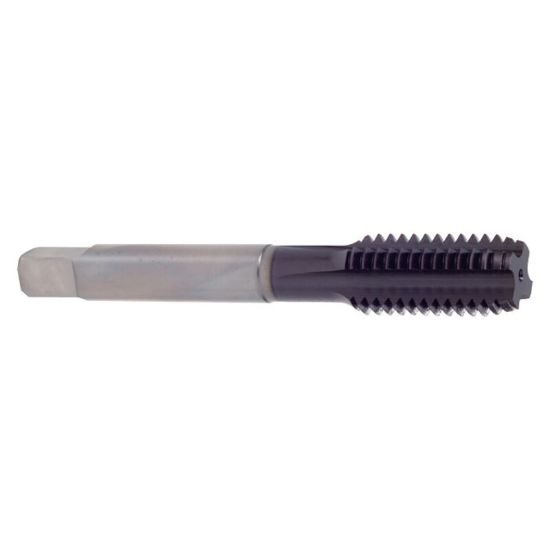

YG-1 TR556R M14-1.50MM Cut Straight Flute Mod Bottom 2.0P-3.0P Super HSS TiAlN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TR556R
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Shipping State Illinois
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Flutes/Inserts 4
Drill Range 0.4898 12.44MM - 0.5051 12.83MM
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.50MM
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Square 0.3220
Cut Rating Ductile Iron, Gray Iron
Thread Type Metric
Thread Limit D6
Machine Side Connection Type Tap Collet
Overall Len 3.5900 91.19MM
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Dimension Standard ANSI/ANSI
Thread Size M14
Length Type Standard
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
