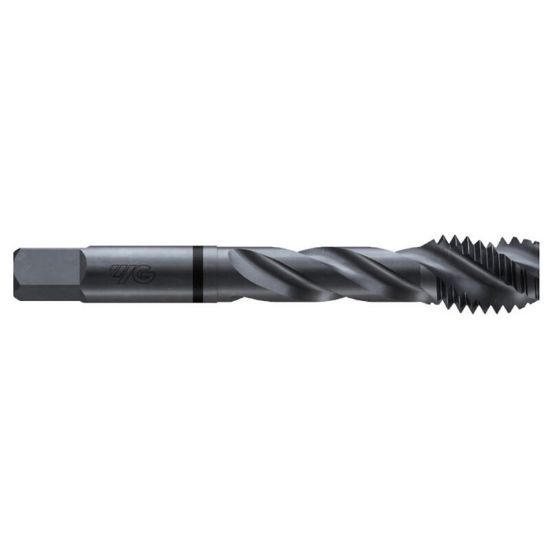

YG-1 TCB766S 7/8-14.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P Super HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-TCB766S
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High-speed steel (HSS or HS) is a subset of tool steels, commonly used as cutting tool material. It is often used in power-saw blades and drill bits. It is superior to the older high-carbon steel tools used extensively through the 1940s in that it can withstand higher temperatures without losing its temper (hardness).

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tap Square 0.5230
Shank/Pilot Dia 0.6970 17.70MM
Overall Len 4.6870 119.05MM
Thread Limit H6/GH6
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Drill Range 0.8008 20.34MM - 0.8193 20.81MM
Tap Chamfer 2.0P-3.0P
Thread Size 7/8"
Thread Pitch 14.00TPI
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Super HSS
Industry-Specific Applications
Job Shop Yes
