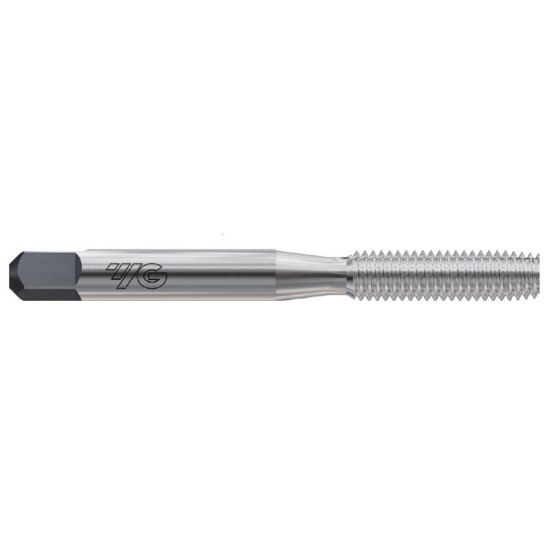

YG-1 T8R02082 No.2-56.00TPI Roll Form Bottoming 1.5P-2.0P HSS TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T8R02082
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Roll Form Tapping, Bottom Tapping, Tapping, Blind Hole Tapping
Performance Rating General Performance
Coating TiN
Package Size 1
Dimensional Specifications
Thread Size No.2
Tap Square 0.1100
Length Type Standard
Tap Type Bottoming
Thread Pitch 56.00TPI
Tap Chamfer 1.5P-2.0P
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Drill Range 0.0768 1.95MM - 0.0791 2.01MM
Thread Type NC/UNC
Tap Style Roll Form
Thread Limit H2/GH2
Cut Rating <30HRC Steel, Aluminum, Brass, Copper
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
