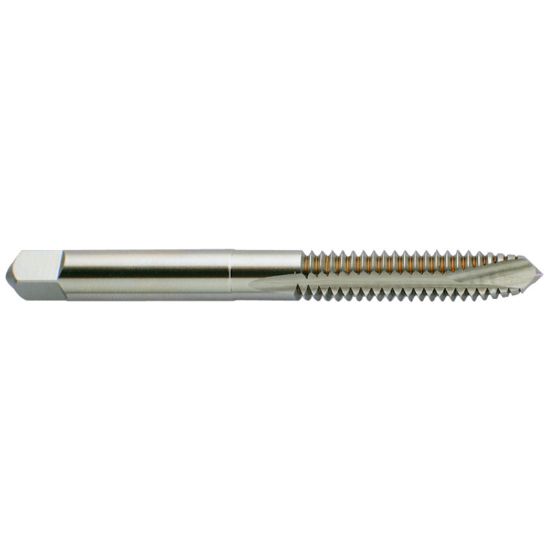

YG-1 T7B17420 M10-1.50MM Over Sized Plug Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7B17420
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Over Sized Tapping, Plug Tapping, Through Hole Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA No
Performance Rating General Performance
Dimensional Specifications
Thread Type Metric
Tap Type Plug
Cut Rating <25HRC Steel, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Over Sized Plug
Tap Chamfer 4.0P-5.0P
Thread Pitch 1.50MM
Tool Material Steel
Tap Square 0.2860
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Flutes/Inserts 2
Length Type Standard
Thread Size M10
Thread Limit GH11 +0.005"
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
