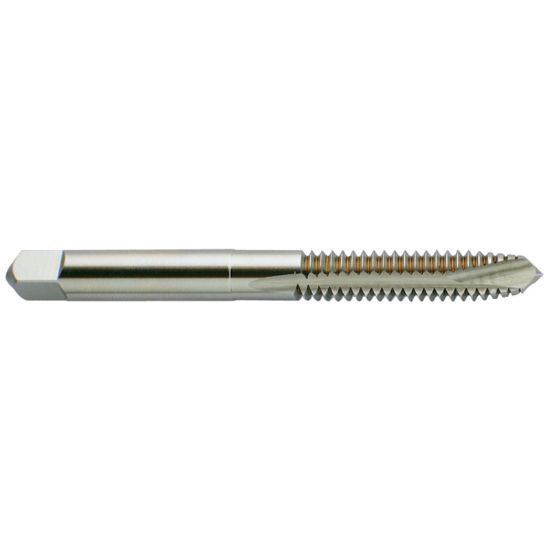

YG-1 T7226700 3/4-10.00TPI Over Sized Plug Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-T7226700
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Over Sized Tapping, Through Hole Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Style Over Sized Plug
Tap Chamfer 4.0P-5.0P
Tap Type Plug
Length Type Standard
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Cut Rating <25HRC Steel, Stainless Steel
Tool Material Steel
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Thread Size 3/4"
Thread Limit GH11 +0.005"
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
