  • YG-1 SI582 1/2-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

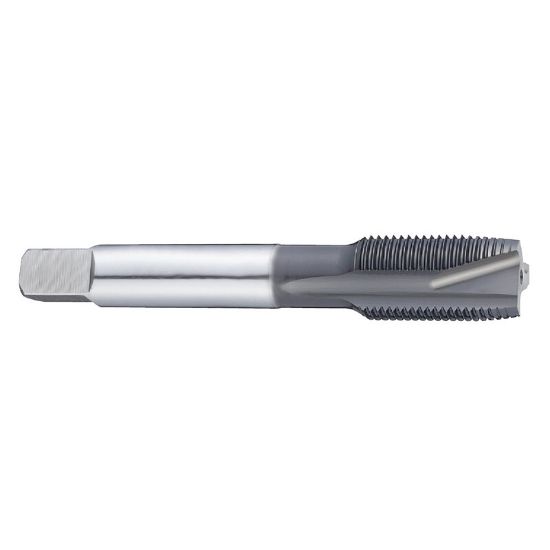

Picture of YG-1 SI582 1/2-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

YG-1 SI582 1/2-20.00TPI STI Bottoming 1.5P-2.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-SI582
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Blind Hole Tapping, Bottom Tapping, Tapping
Coating Hardslick
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 20.00TPI
Machine Side Connection Type Tap Collet
Tap Square 0.3220
Thread Size 1/2"
Tool Material Steel
Shank/Pilot Dia 0.4290 10.90MM
Tap Style STI
Thread Limit 2B
Drill Range 0.5157 13.10MM
Flutes/Inserts 3
Length Type Standard
Tap Type Bottoming
Thread Type STI-I
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.5900 91.19MM
Tap Chamfer 1.5P-2.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
