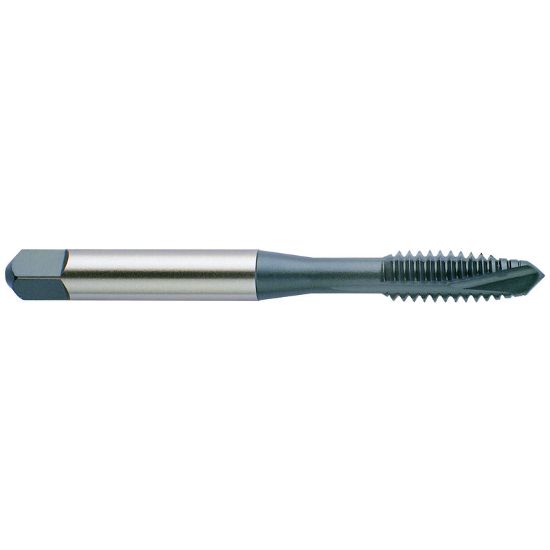

Picture of YG-1 L9365 M8-1.25MM Cut Spiral Point Plug 4P-5P HSSE-V Hardslick

YG-1 L9365 M8-1.25MM Cut Spiral Point Plug 4P-5P HSSE-V Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-L9365
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Coating Hardslick
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size M8
Thread Type Metric
Tap Square 0.2380
Tap Type Plug
Overall Len 2.7200 69.09MM
Length Type Standard
Dimension Standard ANSI/ANSI
Thread Limit D5
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
