  • YG-1 K6616 M16-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

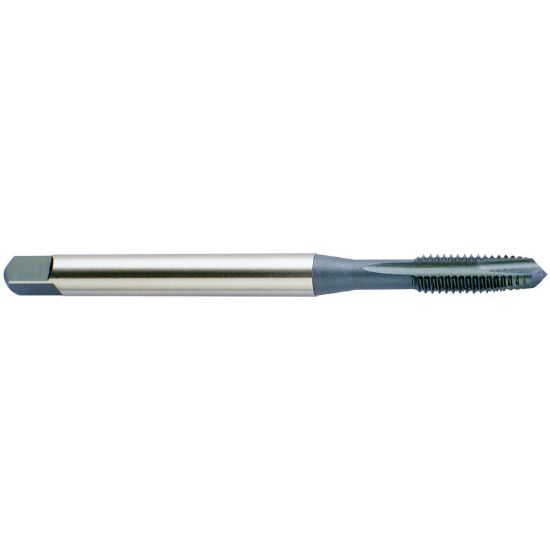

Picture of YG-1 K6616 M16-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6616 M16-1.50MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6616
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Package Size 1
Coating Hardslick
Performance Rating High Performance
Shipping State Illinois
Dimensional Specifications
Cut Rating <30HRC Steel, Stainless Steel
Tap Square 0.3600
Thread Size M16
Dimension Standard DINSI
Length Type Standard
Thread Type Metric
Thread Limit D6
Shank/Pilot Dia 0.4800 12.19MM
Tap Type Plug
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.5724 14.54MM - 0.5839 14.83MM
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
