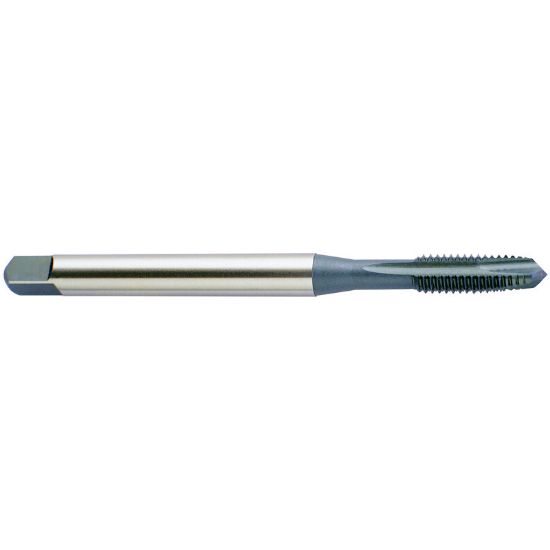

Picture of YG-1 K6244 M4-0.70MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 K6244 M4-0.70MM Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-K6244
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Shipping State Illinois
Coating Hardslick
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 0.1940 4.93MM
Overall Len 2.4800 62.99MM
Thread Limit D4
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Type Plug
Flutes/Inserts 3
Thread Pitch 0.70MM
Dimension Standard DINSI
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
