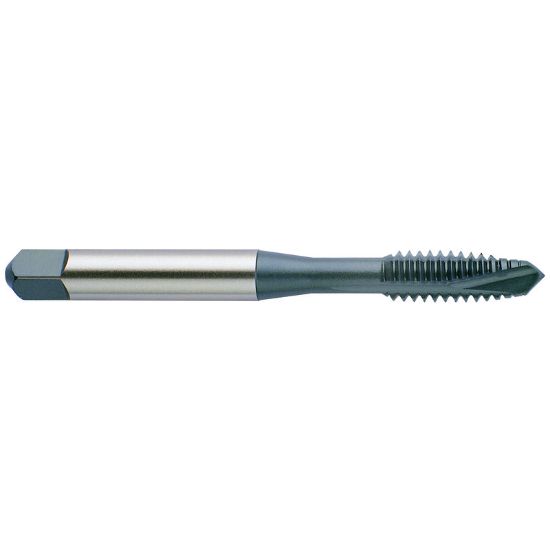

Picture of YG-1 J4465 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Uncoated

YG-1 J4465 5/16-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J4465
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Tap Chamfer 4P-5P
Tap Square 0.2380
Tap Style Cut Spiral Point
Thread Size 5/16"
Overall Len 2.7200 69.09MM
Length Type Standard
Flutes/Inserts 3
Thread Limit H5/GH5
Tap Type Plug
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
