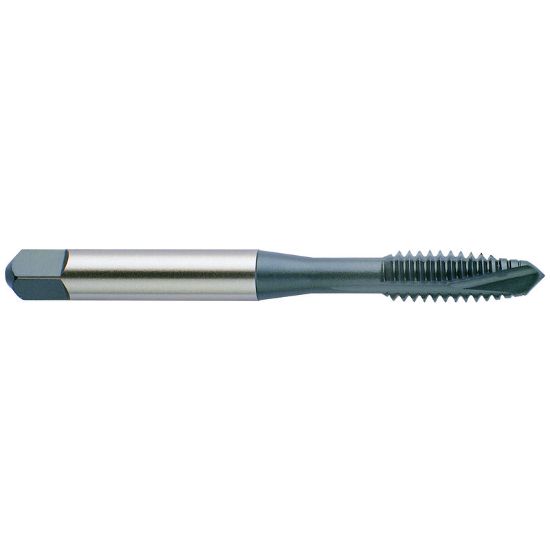

YG-1 J3347 No.10-32.00TPI Over Sized Plug Plug 4P-5P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J3347
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Over Sized Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Illinois
Coating Steam Oxide
Dimensional Specifications
Tool Material Steel
Tap Chamfer 4P-5P
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.1940 4.93MM
Thread Limit GH7 +0.0035
Tap Square 0.1520
Tap Type Plug
Thread Size No.10
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Style Over Sized Plug
Length Type Standard
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
