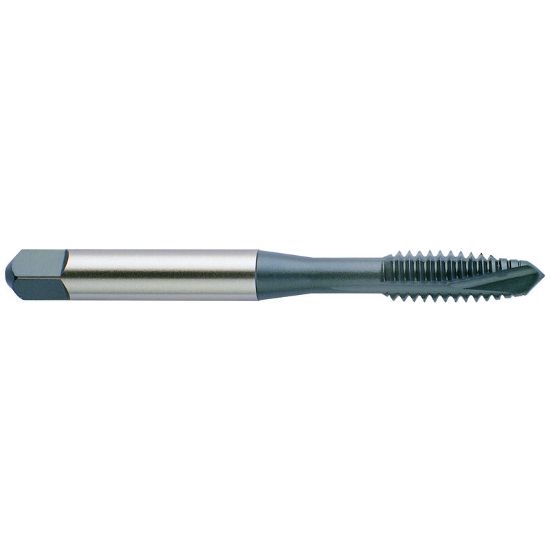

Picture of YG-1 J2402 1/4-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2402 1/4-20.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J2402
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Through Hole Tapping, Plug Tapping, Tapping
Coating Hardslick
Made In USA No
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Tap Type Plug
Length Type Standard
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Style Cut Spiral Point
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
