  • YG-1 J2347 No.10-32.00TPI Over Sized Plug Plug 4P-5P HSSE-V3 Hardslick

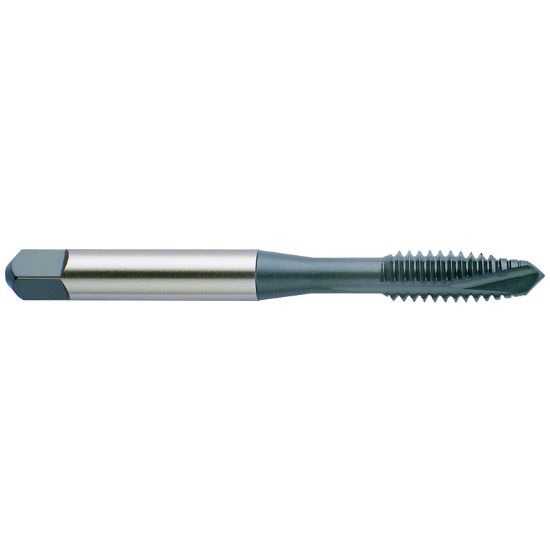

Picture of YG-1 J2347 No.10-32.00TPI Over Sized Plug Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2347 No.10-32.00TPI Over Sized Plug Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J2347
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Over Sized Tapping, Plug Tapping, Tapping
Shipping State Illinois
Coating Hardslick
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Thread Limit GH7 +0.0035
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Machine Side Connection Type Tap Collet
Tap Style Over Sized Plug
Tap Square 0.1520
Tap Type Plug
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
