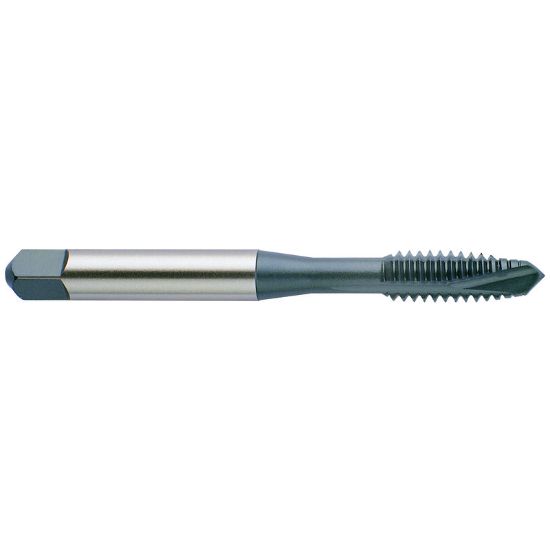

Picture of YG-1 J2343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2343 No.10-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J2343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA No
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Thread Limit H3/GH3
Length Type Standard
Thread Type NF/UNF/UNEF
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Tool Material Steel
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Cut Rating <30HRC Steel, Stainless Steel
Tap Chamfer 4P-5P
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
