  • YG-1 J2282 No.8-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

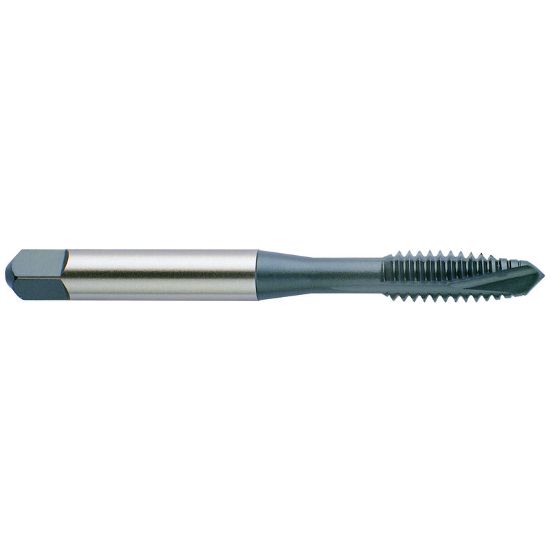

Picture of YG-1 J2282 No.8-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2282 No.8-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J2282
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard ANSI/ANSI
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Length Type Standard
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Style Cut Spiral Point
Thread Pitch 32.00TPI
Tap Type Plug
Thread Size No.8
Overall Len 2.1250 53.98MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
