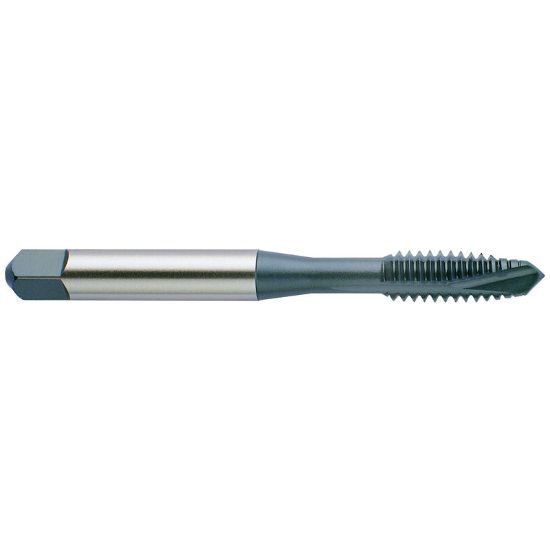

Picture of YG-1 J2243 No.6-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

YG-1 J2243 No.6-32.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J2243
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Thread Size No.6
Cut Rating <30HRC Steel, Stainless Steel
Flutes/Inserts 3
Drill Range 0.1051 2.67MM - 0.1134 2.88MM
Thread Type NC/UNC
Thread Limit H3/GH3
Length Type Standard
Thread Pitch 32.00TPI
Tap Type Plug
Tool Material Steel
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Tap Chamfer 4P-5P
Shank/Pilot Dia 0.1410 3.58MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
