  • YG-1 J1082 No.2-56.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

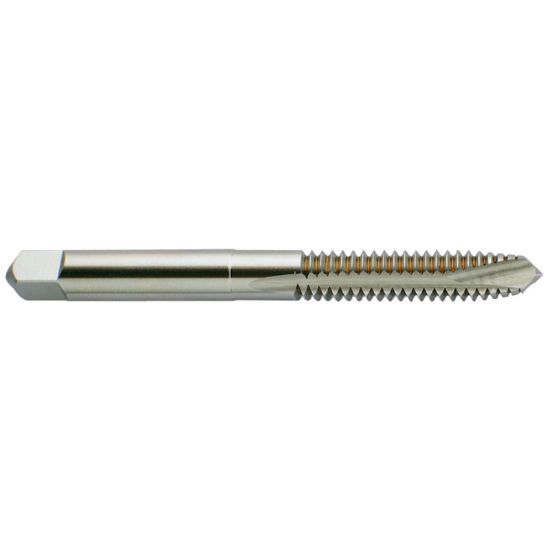

Picture of YG-1 J1082 No.2-56.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

YG-1 J1082 No.2-56.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-J1082
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Coating TiN
Shipping State Illinois
Dimensional Specifications
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Thread Size No.2
Thread Limit H3/GH3
Tap Square 0.1100
Length Type Standard
Tap Type Plug
Thread Type NC/UNC
Flutes/Inserts 2
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
