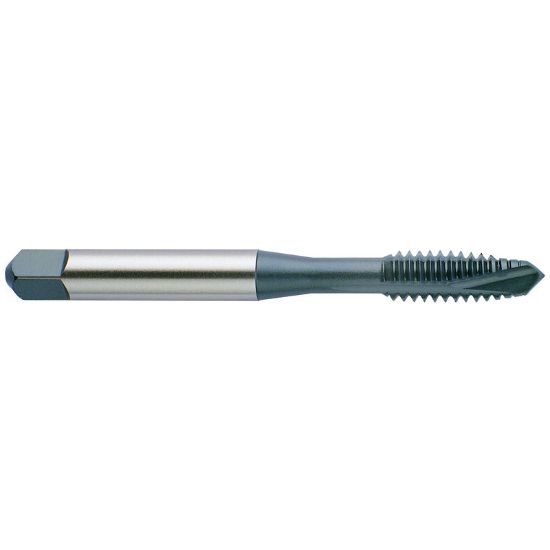

Picture of YG-1 I2423 1/4-28.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

YG-1 I2423 1/4-28.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-I2423
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Shipping State Illinois
Package Size 1
Coating TiN
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Limit H3/GH3
Length Type Standard
Thread Size 1/4"
Tap Type Plug
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Tap Square 0.1910
Shank/Pilot Dia 0.2550 6.48MM
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Style Cut Spiral Point
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
