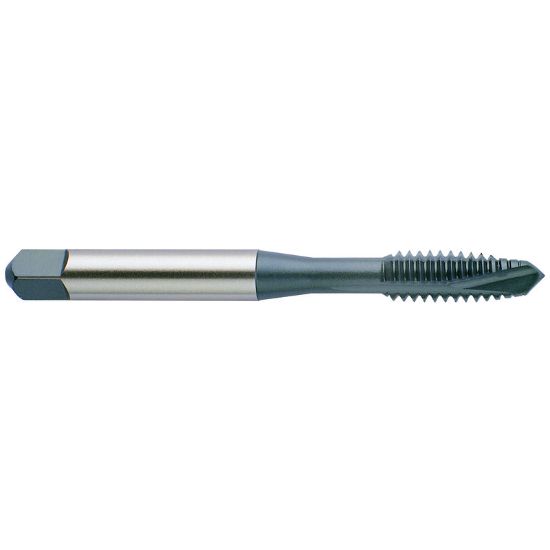

Picture of YG-1 I2323 No.10-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

YG-1 I2323 No.10-24.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-I2323
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA No
Coating TiN
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Flutes/Inserts 3
Thread Type NC/UNC
Thread Limit H3/GH3
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
