  • YG-1 I1483 3/8-16.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Uncoated

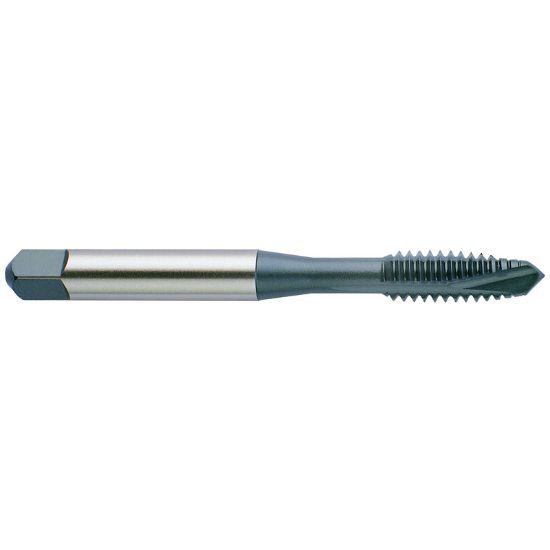

Picture of YG-1 I1483 3/8-16.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Uncoated

YG-1 I1483 3/8-16.00TPI Cut Spiral Point Plug 4P-5P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-I1483
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Size 3/8"
Thread Type NC/UNC
Thread Limit H3/GH3
Shank/Pilot Dia 0.3810 9.68MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cut Rating <30HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Tap Type Plug
Flutes/Inserts 3
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Overall Len 2.9370 74.60MM
Length Type Standard
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Tap Square 0.2860
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
