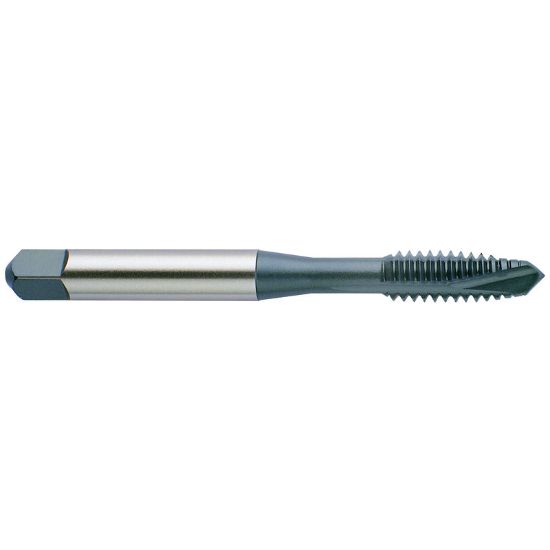

YG-1 I0507 3/8-24.00TPI Over Sized Plug Plug 4P-5P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-I0507
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Through Hole Tapping, Over Sized Tapping, Plug Tapping, Tapping
Shipping State Illinois
Coating Steam Oxide
Performance Rating General Performance
Made In USA No
Dimensional Specifications
Tap Square 0.2860
Tap Style Over Sized Plug
Tool Material Steel
Overall Len 2.9370 74.60MM
Thread Limit GH7 +0.0035
Tap Type Plug
Cut Rating <30HRC Steel, Stainless Steel
Tap Chamfer 4P-5P
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flutes/Inserts 3
Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Thread Size 3/8"
Shank/Pilot Dia 0.3810 9.68MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
