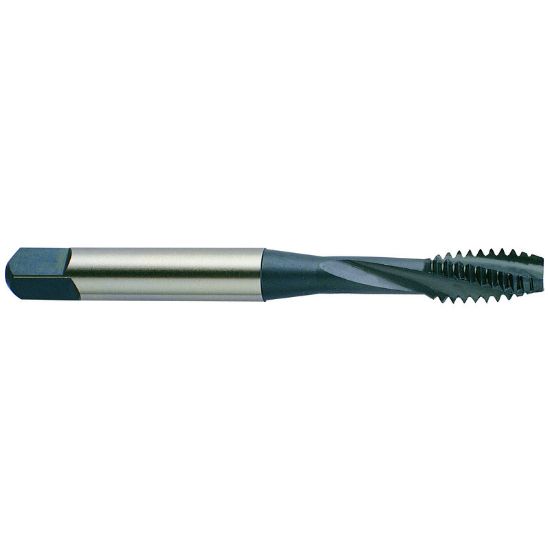

YG-1 H8725 3/4-16.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P P-HSS Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-H8725
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 4.2500 107.95MM
Flutes/Inserts 4
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Type Mod Bottom
Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Thread Size 3/4"
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Tool Material Steel
Thread Pitch 16.00TPI
Thread Limit H5/GH5
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat P-HSS
Coolant Thru No
Industry-Specific Applications
Mold Yes
Job Shop Yes
