  • YG-1 G2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Hardslick

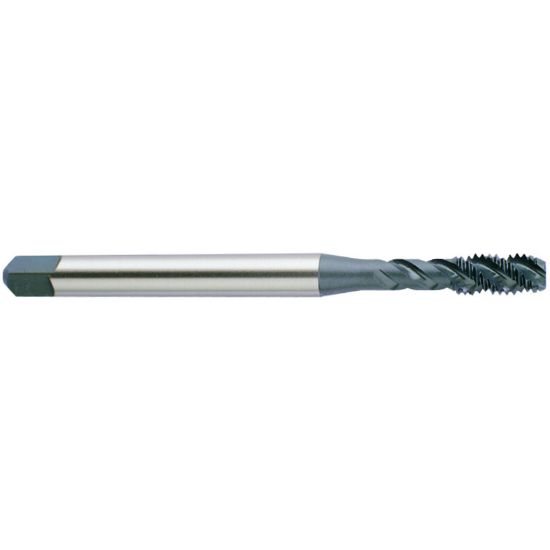

Picture of YG-1 G2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Hardslick

YG-1 G2343 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G2343
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Tapping, Cut Tapping
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Coating Hardslick
Package Size 1
Dimensional Specifications
Thread Size No.10
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Overall Len 2.7560 70.00MM
Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1520
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Tool Material Steel
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Limit H3/GH3
Dimension Standard DINSI
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
