  • YG-1 G1283 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V TiN

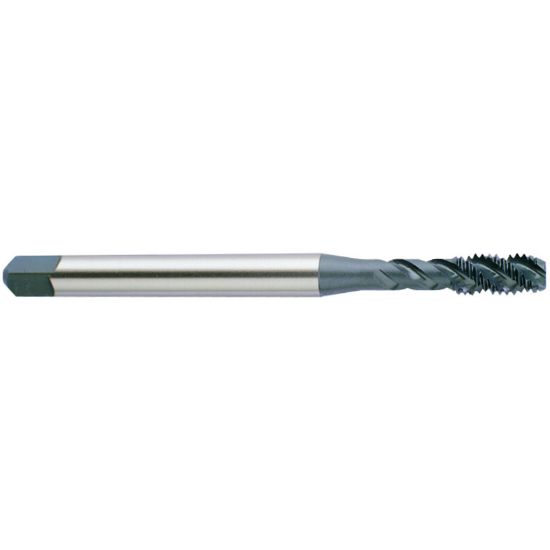

Picture of YG-1 G1283 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V TiN

YG-1 G1283 No.8-32.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G1283
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Thread Pitch 32.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Dimension Standard DINSI
Tap Square 0.1310
Tap Chamfer 2.0P-3.0P
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Size No.8
Overall Len 2.4800 62.99MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
