  • YG-1 G0585 1/2-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

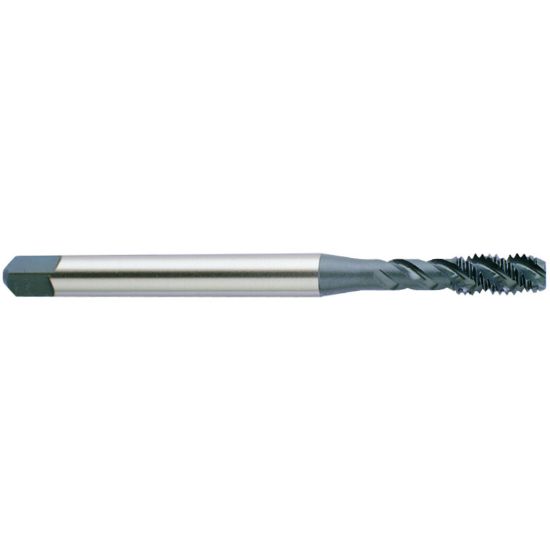

Picture of YG-1 G0585 1/2-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

YG-1 G0585 1/2-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G0585
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Type NF/UNF/UNEF
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit H5/GH5
Shank/Pilot Dia 0.3670 9.32MM
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Thread Pitch 20.00TPI
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Size 1/2"
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.4476 11.37MM - 0.4606 11.70MM
Tap Square 0.2750
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
