  • YG-1 G0565 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

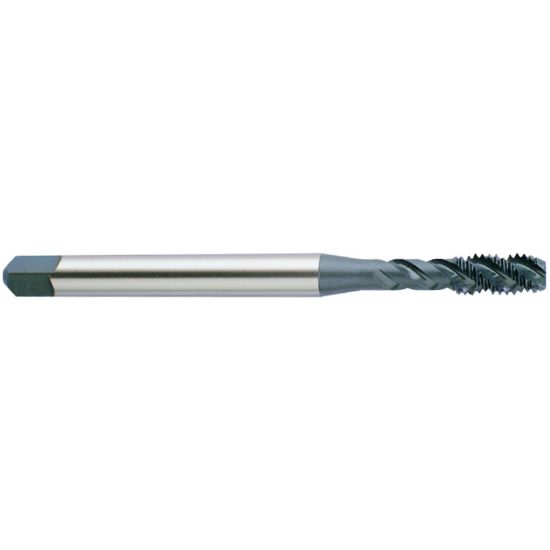

Picture of YG-1 G0565 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

YG-1 G0565 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-G0565
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Overall Len 4.3310 110.01MM
Thread Limit H5/GH5
Thread Pitch 13.00TPI
Thread Type NC/UNC
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2750
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Machine Side Connection Type Tap Collet
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
