  • YG-1 F8082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN

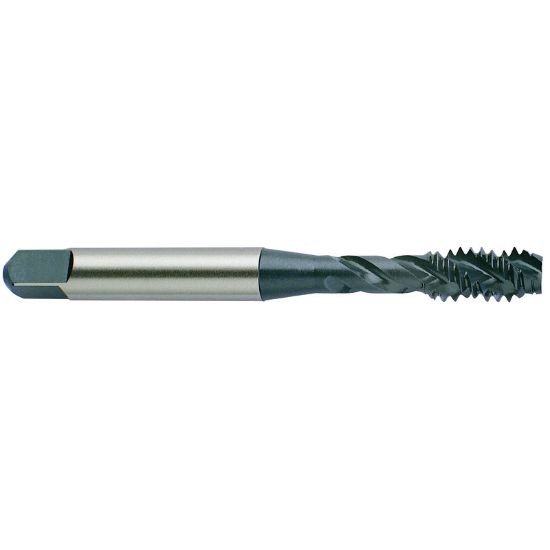

Picture of YG-1 F8082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN

YG-1 F8082 No.2-56.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V TiN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-F8082
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Package Size 1
Coating TiN
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 2
Length Type Standard
Shank/Pilot Dia 0.1410 3.58MM
Overall Len 1.7500 44.45MM
Cut Rating <25HRC Steel, Stainless Steel
Drill Range 0.0673 1.71MM - 0.0720 1.83MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
