  • YG-1 F5525 7/16-14.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

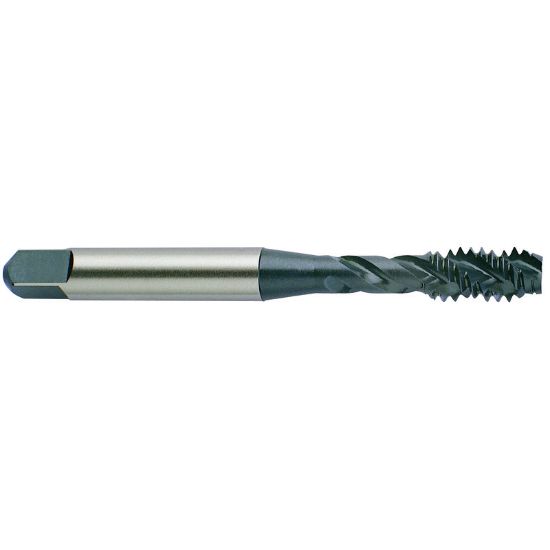

Picture of YG-1 F5525 7/16-14.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

YG-1 F5525 7/16-14.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSSE-V Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-F5525
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Bottom Tapping
Performance Rating General Performance
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Cut Rating <25HRC Steel, Stainless Steel
Flutes/Inserts 3
Tap Square 0.2420
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Type NC/UNC
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Tap Type Bottoming
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V
Industry-Specific Applications
Job Shop Yes
