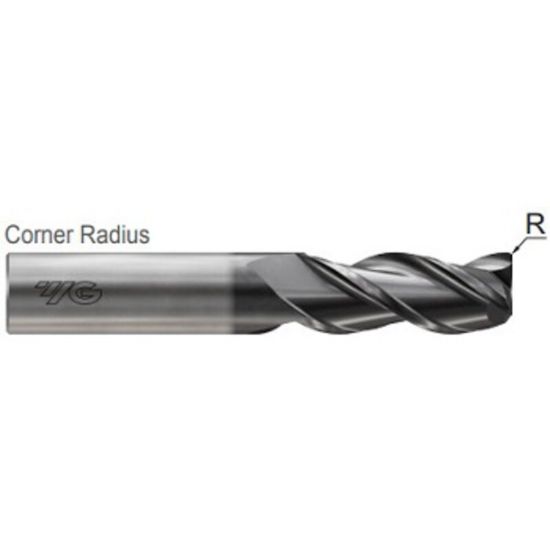

YG-1 E5G97953 DIA 7/16 SH 0.4375 LOC 1.2500 OAL 2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.1200 3.05MM Alu-Power HPC

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E5G97953
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Face Milling, Profile Milling, Slot Milling
Made In USA No
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Overall Len 2.7500 69.85MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.4375 11.11MM
Inch/Metric Inch
Length Type Standard
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Cutter Dia 0.4375 11.11MM - 7/16
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Helix Angle 37°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Mold Yes
Automotive Yes
Job Shop Yes
