  • YG-1 E3315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

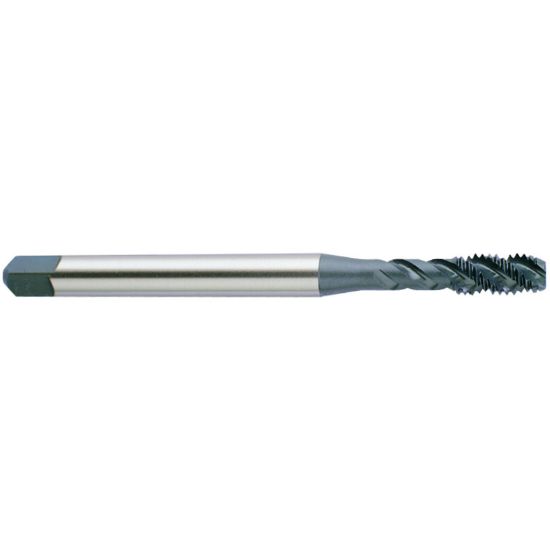

Picture of YG-1 E3315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 E3315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E3315
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 1.00MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Overall Len 3.1560 80.16MM
Tool Material Steel
Thread Limit D5
Shank/Pilot Dia 0.2550 6.48MM
Thread Size M6
Flutes/Inserts 3
Dimension Standard DINSI
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
