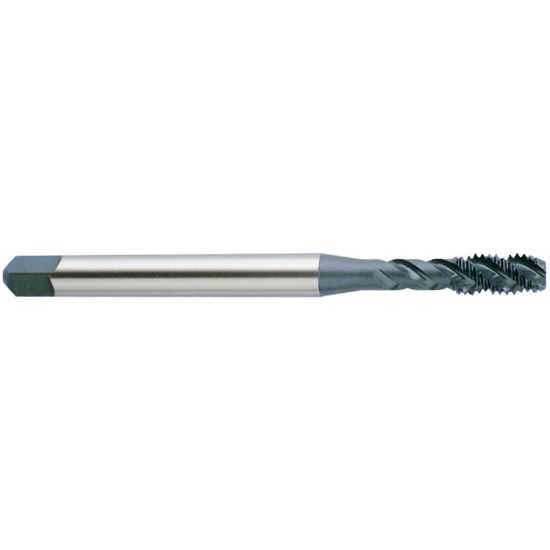

YG-1 E2284 M5-0.80MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E2284
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Mod Bottom Tapping, Tapping, Cut Tapping
Package Size 1
Coating Steam Oxide
Performance Rating High Performance
Dimensional Specifications
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit D4
Flute Direction R - Right
Length Type Standard
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Dimension Standard DINSI
Shank/Pilot Dia 0.1940 4.93MM
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Type Metric
Thread Size M5
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
