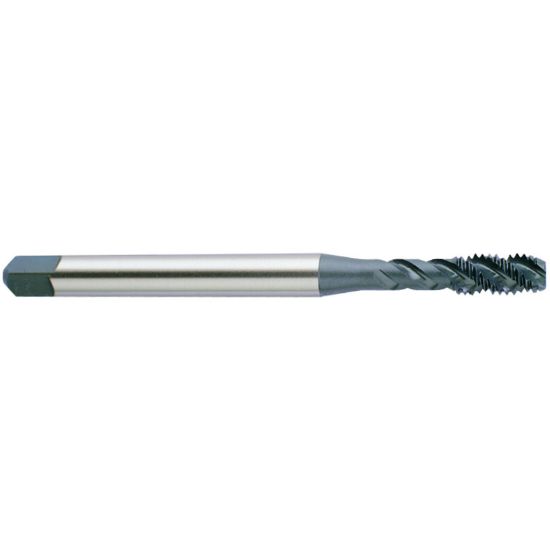

YG-1 E2224 M3.5-0.60MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-E2224
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Coating Steam Oxide
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Limit D4
Tool Material Steel
Tap Square 0.1100
Shank/Pilot Dia 0.1410 3.58MM
Flute Direction R - Right
Dimension Standard DINSI
Length Type Standard
Thread Pitch 0.60MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Type Mod Bottom
Thread Size M3.5
Thread Type Metric
Overall Len 2.2050 56.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
