  • YG-1 D4425 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

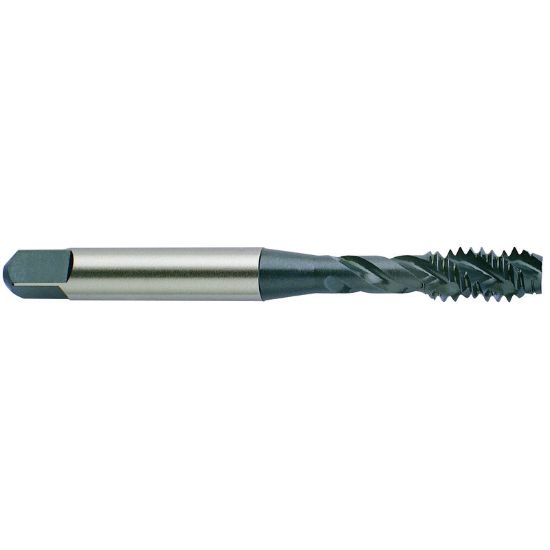

Picture of YG-1 D4425 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 D4425 1/4-28.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-D4425
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Limit H5/GH5
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Tool Material Steel
Shank/Pilot Dia 0.2550 6.48MM
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size 1/4"
Tap Chamfer 2.0P-3.0P
Thread Pitch 28.00TPI
Flutes/Inserts 3
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
