  • YG-1 D4405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

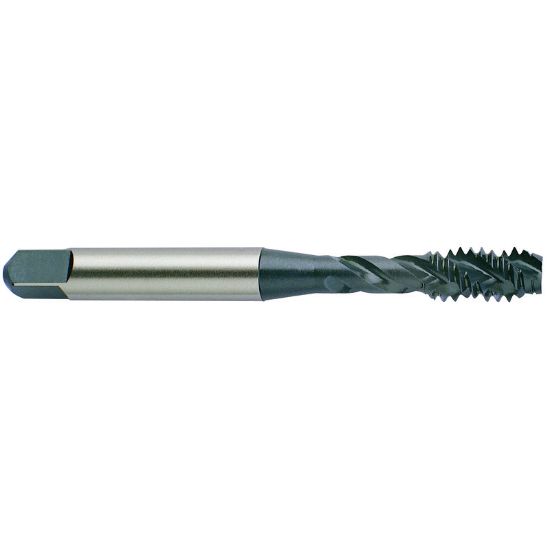

Picture of YG-1 D4405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

YG-1 D4405 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-D4405
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction R - Right
Tool Material Steel
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Length Type Standard
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Thread Size 1/4"
Thread Limit H5/GH5
Dimension Standard ANSI/ANSI
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
