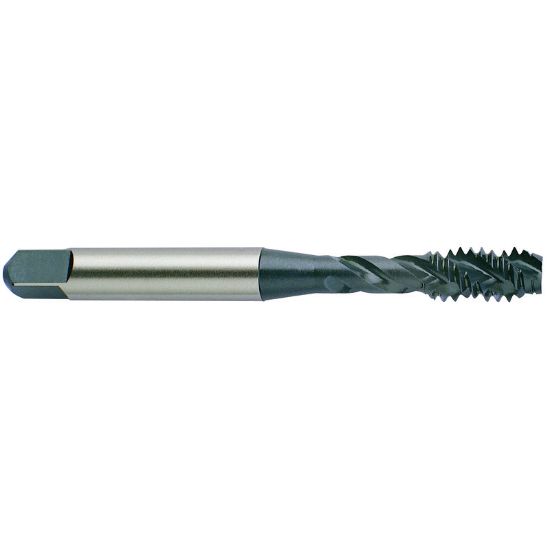

YG-1 D3407 1/4-20.00TPI Over Sized Mod Bottom Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-D3407
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Blind Hole Tapping, Mod Bottom Tapping, Over Sized Tapping, Tapping
Coating Steam Oxide
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 20.00TPI
Thread Type NC/UNC
Tap Style Over Sized Mod Bottom
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Tap Type Mod Bottom
Tool Material Steel
Overall Len 2.5000 63.50MM
Tap Square 0.1910
Tap Chamfer 2.0P-3.0P
Thread Size 1/4"
Thread Limit GH7 +0.0035
Flutes/Inserts 3
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
