  • YG-1 BV315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

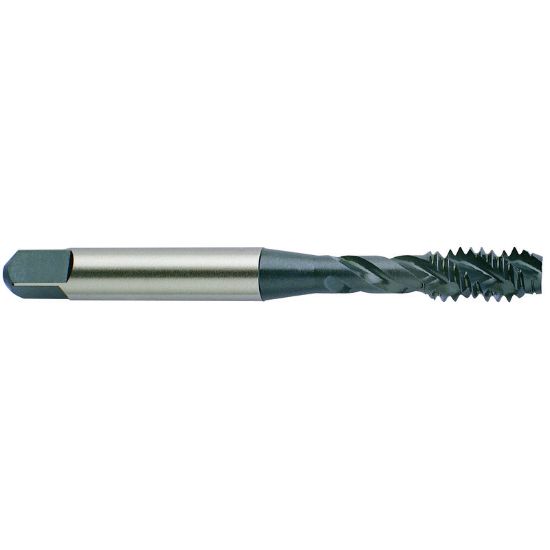

Picture of YG-1 BV315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 BV315 M6-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BV315
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Coating Hardslick
Performance Rating General Performance
Dimensional Specifications
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Shank/Pilot Dia 0.2550 6.48MM
Flute Direction R - Right
Length Type Standard
Thread Size M6
Flutes/Inserts 3
Thread Type Metric
Dimension Standard ANSI/ANSI
Thread Pitch 1.00MM
Thread Limit D5
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Overall Len 2.5000 63.50MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-V3
Industry-Specific Applications
Job Shop Yes
