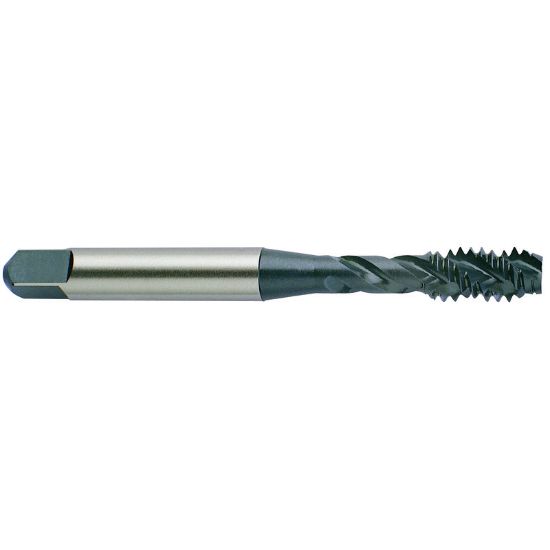

Picture of YG-1 BV224 M3.5-0.60MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

YG-1 BV224 M3.5-0.60MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Hardslick

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BV224
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

Hardslick Coating. Range: up to 37Rc. Excellent results on steel, stainless steel, nickel alloys and aluminum. Reduces galling and seizing

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Coating Hardslick
Package Size 1
Made In USA No
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Type Metric
Flutes/Inserts 3
Thread Pitch 0.60MM
Cut Rating <40HRC Steel
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tool Material Steel
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1410 3.58MM
Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Thread Limit D4
Flute Direction R - Right
Overall Len 2.0000 50.80MM
Tap Square 0.1100
Length Type Standard
Thread Size M3.5
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
