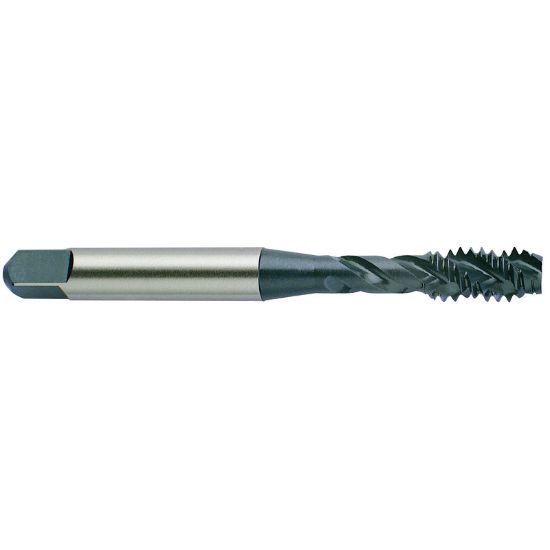

YG-1 BU445 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-V3 Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: YG-1
SKU: YG-BU445
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Vanadium: increases wear resistance of finishing tools. • Cobalt: enables increased hardening temperatures and improves heat resistance. All types of HSS contain significant amounts of carbon, which reacts with the refractory metals to form hard carbides, which increase wear resistance and hot hardness.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating General Performance
Coating Steam Oxide
Made In USA No
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Size M10
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Pitch 1.00MM
Thread Limit D5
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Flute Direction R - Right
Overall Len 2.9370 74.60MM
Length Type Standard
Cut Rating <40HRC Steel
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Square 0.2860
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Shank/Pilot Dia 0.3810 9.68MM
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat HSSE-V3
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
